5.5 Nerve Impulse | Nervous System Of Man | Biology 12

A nerve impulse is a signal transmitted along a nerve fiber. It consists of a wave of electrochemical changes that travel from one end of a neuron to the other, carrying information from receptors to the Central Nervous System (CNS) and from the CNS to effectors.

Neuron Structure→

Membrane Potential

The electrical potential (a capacity to do electrical work) across the neuron's membrane. It exists in two primary states:

Resting Membrane Potential (RMP)
Action Potential (AP)

Resting Membrane Potential (RMP)

The RMP is the membrane potential of a neuron that is not currently sending an impulse. It is in a polarized state.

Characteristics:
- The outer surface of the membrane is more positive than the inner surface.
- The potential difference is approximately -70 mV (the inside is negative relative to the outside).
Factors Maintaining RMP:
1. Sodium-Potassium (Na⁺/K⁺) Pump:
  - Actively transports ions against their concentration gradients, using energy (ATP).
  - Pumps 3 Na⁺ ions out for every 2 K⁺ ions pumped in.
  - This results in a net positive charge moving out, making the inside more negative.
  - Maintains high [K⁺] inside and high [Na⁺] outside the neuron.
2. Negative Organic Ions:
  - Large, negatively charged molecules (proteins, amino acids, RNA) are trapped inside the neuron, contributing to the negative internal charge.
3. Potassium (K⁺) Leak Channels:
  - The membrane is more permeable to K⁺ than to Na⁺ at rest due to "leaky" K⁺ channels.
  - K⁺ ions continuously leak out of the cell down their concentration gradient, further increasing the positive charge on the outside.

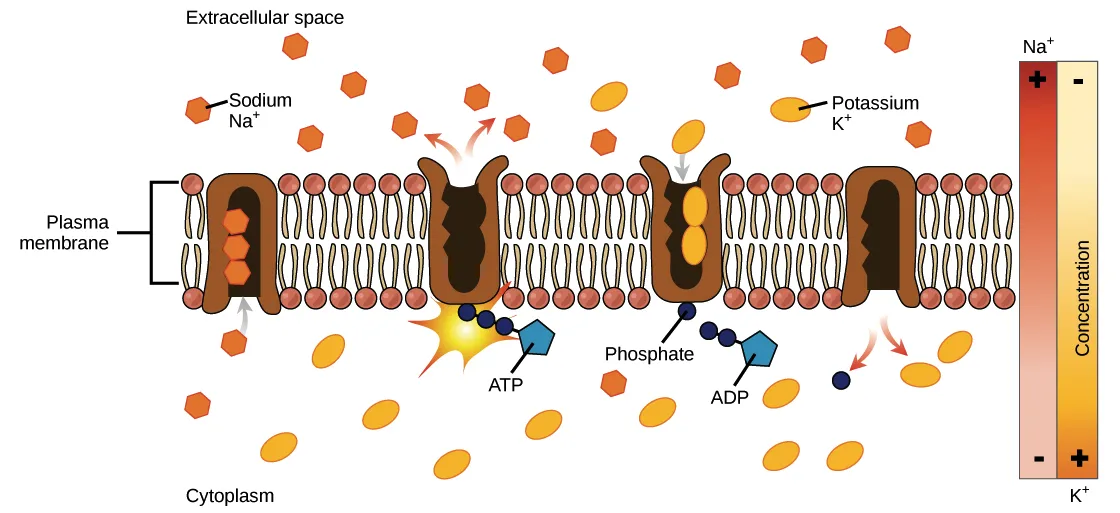

Fig. 5.11: Ionic movement across neuron membrane during the resting state, maintained by the Na⁺/K⁺ pump and leak channels.

Action Potential (AP)

An action potential is a rapid, temporary reversal of the membrane potential that occurs when a neuron is stimulated by a threshold stimulus. It is a wave of depolarization followed by repolarization.

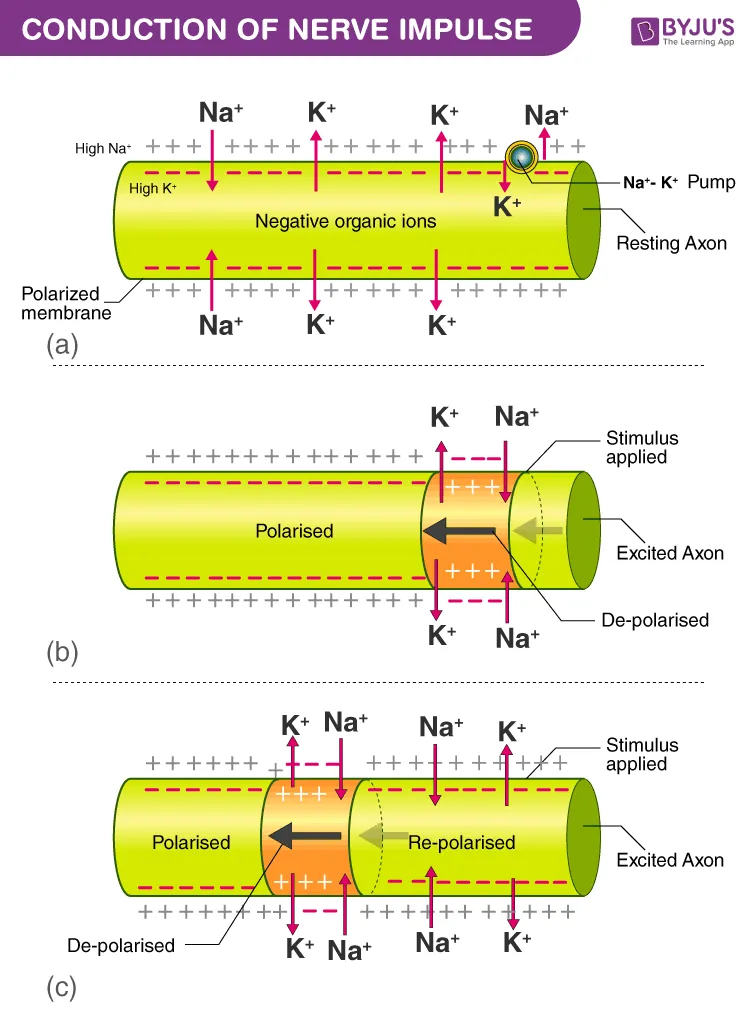

Fig. 5.12: Conduction of a nerve impulse as a wave of depolarization and repolarization.

Phases of an Action Potential

Stimulus and Depolarization:
- A threshold stimulus (a stimulus strong enough to trigger an AP) is received.
- Voltage-gated Na⁺ channels open rapidly.
- Na⁺ ions rush into the neuron, down their electrochemical gradient.
- The membrane potential changes from -70 mV to a positive value (up to +50 mV). This reversal of charge is called depolarization.
Repolarization:
- After a brief period (~1 ms), the Na⁺ channels close.
- Voltage-gated K⁺ channels open.
- K⁺ ions rush out of the neuron, down their electrochemical gradient.
- The exit of positive K⁺ ions makes the inside of the membrane negative again, restoring the polarized state.
Hyperpolarization:
- The K⁺ channels are slow to close, causing a brief "overshoot" where the membrane becomes more negative than the resting potential.
Refractory Period:
- A brief recovery period after an AP during which the neuron cannot generate another impulse.
- The sodium-potassium pump actively works to restore the original ion concentrations (high K⁺ in, high Na⁺ out).
- This period ensures the one-way travel of the nerve impulse and limits the frequency of firing (to about 250 impulses/second).

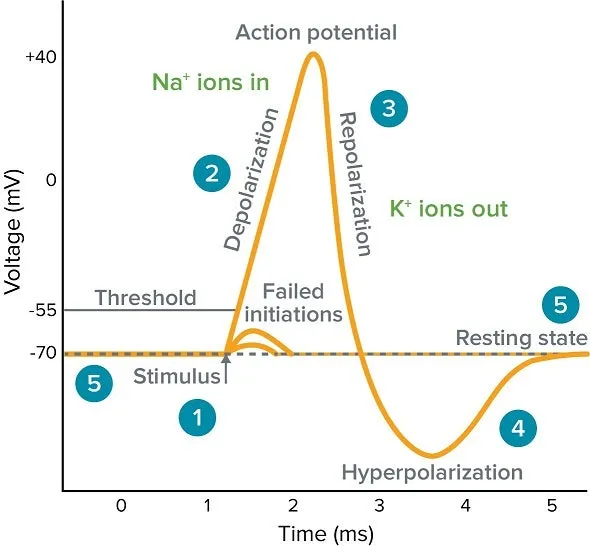

Action potential graph — Fig. 5.13: Graph showing the change in membrane potential during an action potential.

Phase	Membrane State	Key Event	Ion Channel Status	Membrane Potential (mV)
Resting	Polarized	Na⁺/K⁺ pump active	Leaky K⁺ channels open	-70 mV
Depolarization	Depolarized	Influx of Na⁺ ions	Voltage-gated Na⁺ channels open	Rises to +50 mV
Repolarization	Repolarizing	Efflux of K⁺ ions	Na⁺ channels close, K⁺ channels open	Falls from +50 mV
Hyperpolarization	Hyperpolarized	K⁺ channels slow to close	K⁺ channels closing	Dips below -70 mV

Velocity of Nerve Impulse

The speed at which a nerve impulse travels is variable and depends on two main factors:

Myelination:
- Myelinated fibers are covered by an insulating myelin sheath. The impulse "jumps" from one gap (Node of Ranvier) to the next in a process called saltatory conduction. This is extremely fast (up to 120 m/s).
- Non-myelinated fibers conduct the impulse continuously along the entire axon membrane, which is slower (1-3 m/s). Myelination also conserves energy.
Axon Diameter:
- Thicker axons have less resistance to electrical current flow and therefore conduct impulses faster than thin axons.

Synaptic Delay: The transmission of a signal across a synapse takes approximately one millisecond, which is significantly slower than impulse travel along an axon.

Possible Questions/Answers

Q: What is a nerve impulse? A: A wave of electrochemical changes (an action potential) that travels along the length of a neuron to transmit a signal.
Q: What is the difference between Resting Membrane Potential (RMP) and Action Potential (AP)? A: RMP is the stable, negative charge (-70 mV) of an unstimulated neuron (polarized state). AP is a rapid, temporary reversal of this charge (depolarization to +50 mV) that propagates along the axon when the neuron is stimulated.
Q: How is the Resting Membrane Potential maintained? A: It is maintained by three factors: the sodium-potassium pump (3 Na⁺ out, 2 K⁺ in), the presence of large negative organic ions inside the cell, and the outward leakage of K⁺ ions through leak channels.
Q: What causes depolarization during an action potential? A: The rapid opening of voltage-gated sodium (Na⁺) channels and the subsequent influx of Na⁺ ions into the neuron.
Q: What is saltatory conduction? A: It is the rapid transmission of a nerve impulse along a myelinated axon, where the action potential "jumps" from one Node of Ranvier to the next, which is much faster than continuous conduction in unmyelinated axons.
