5.4 Reflex Arc
This document outlines the components and pathway of a reflex arc, which is the neural pathway that controls an immediate, involuntary response known as a reflex action.
Reflex Action
- Reflex Action: An immediate, automatic, and involuntary response to external or internal environmental changes. Its primary purpose is often protective.
- Reflex Arc: The specific neural pathway that a nerve impulse follows during a reflex action.
Components of a Reflex Arc
A typical reflex arc consists of five fundamental components, working in a specific sequence.
| Component | Function | Example (Touching a Hot Object) |
|---|---|---|
| 1. Receptor | Detects a stimulus from the environment. | Heat receptors in the skin of the hand. |
| 2. Sensory Neuron | Transmits the nerve impulse from the receptor to the central nervous system (CNS). | Carries the impulse from the hand to the spinal cord. |
| 3. Interneuron | A neuron located entirely within the CNS (e.g., spinal cord) that connects the sensory neuron to the motor neuron. | Relays the impulse from the sensory neuron to the motor neuron within the spinal cord. |
| 4. Motor Neuron | Transmits the nerve impulse from the CNS to an effector. | Carries the impulse from the spinal cord to the muscles in the arm. |
| 5. Effector | The muscle or gland that responds to the motor command. | Biceps muscle contracts, pulling the hand away from the hot object. |
Pathway of a Nerve Impulse

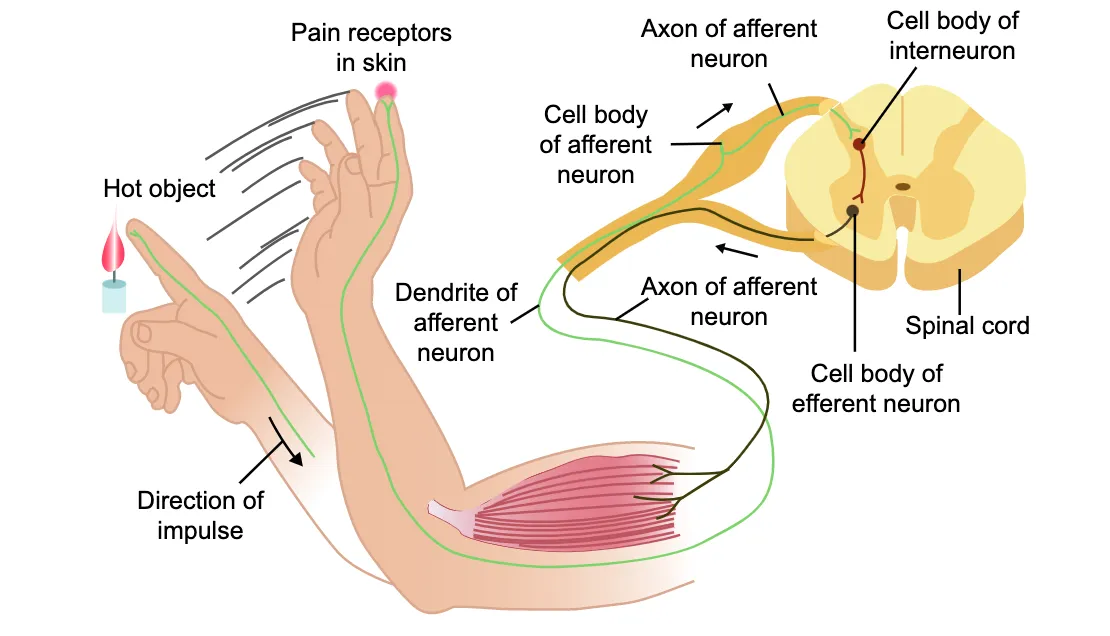

The sequence of events in a reflex arc, using the example of touching a hot object:
- Stimulus: A hot object is touched.
- Receptor Activation: Heat receptors in the skin are activated. Receptors as Transducers→
- Sensory Neuron: The activated receptors stimulate a sensory neuron. The impulse travels along this neuron into the spinal cord via the dorsal nerve root.
- Synapse in CNS: The sensory neuron synapses with an interneuron located entirely within the spinal cord.
- Interneuron: The impulse travels across the interneuron.
- Synapse with Motor Neuron: The interneuron synapses with the dendrites and cell body of a motor neuron, also located within the spinal cord.
- Motor Neuron: The impulse travels along the motor neuron, out of the spinal cord.
- Effector Response: The motor neuron forms synapses with muscle cells (the effector), causing them to contract and rapidly pull the hand away from the heat source.
Possible Questions/Answers
-
Q: What is the difference between a reflex action and a reflex arc? A: A reflex action is the involuntary response itself (e.g., pulling your hand away), while the reflex arc is the neural pathway the impulse travels to cause that action.
-
Q: What is the role of the interneuron? A: The interneuron acts as a connector within the central nervous system, relaying the nerve impulse from the sensory neuron to the motor neuron. This allows for a very rapid response without involving the brain for conscious thought.
-
Q: Why are reflex actions so fast? A: They are fast because the nerve impulse travels a short, direct path through the spinal cord (the reflex arc) and does not need to be processed by the brain for a decision, allowing for an immediate, protective response.
Summary
- A reflex action is a rapid, automatic, and involuntary response to a stimulus.
- The neural pathway controlling this response is called the reflex arc.
- The five key components of a reflex arc are: Receptor → Sensory Neuron → Interneuron → Motor Neuron → Effector.
- The process begins with a stimulus detected by a receptor and ends with a response from an effector (a muscle or gland).
- Biological Significance: Reflex arcs provide a crucial survival mechanism, allowing organisms to react quickly to potentially harmful stimuli, thereby preventing or minimizing injury.
