5.5 Local Circuits in Saltatory Conduction | Nervous System Of Man | Biology 12

This section explains how local electrical currents within a Neuron→ facilitate the rapid transmission of nerve impulses along myelinated axons, a process known as saltatory conduction.

Local Circuits

These are localized flows of electrical current, specifically the diffusion of positive ions (primarily sodium ions, Na⁺) along the inside of the axon's membrane.

When an action potential occurs at one point (e.g., a node of Ranvier), a high concentration of Na⁺ ions rushes into the axon.
These positive ions then diffuse along the axon, creating a "local circuit" of current.
This current flow depolarizes the next section of the axon membrane.

This is the method of nerve impulse propagation along myelinated axons. The action potential does not travel smoothly along the entire membrane but instead "jumps" from one Node of Ranvier to the next.

Mechanism:

An action potential is generated at a Node of Ranvier, causing an influx of Na⁺.
A local circuit is established as these Na⁺ ions diffuse rapidly through the cytoplasm to the next node. The myelin sheath acts as an electrical insulator and prevents ion leakage, preserving the current's strength.
This current depolarizes the membrane at the next node to its threshold potential.
A new action potential is triggered at this next node.

This "jumping" process is significantly faster than the continuous propagation seen in unmyelinated axons. Damage to this system can lead to serious Disorders of the Nervous System→.

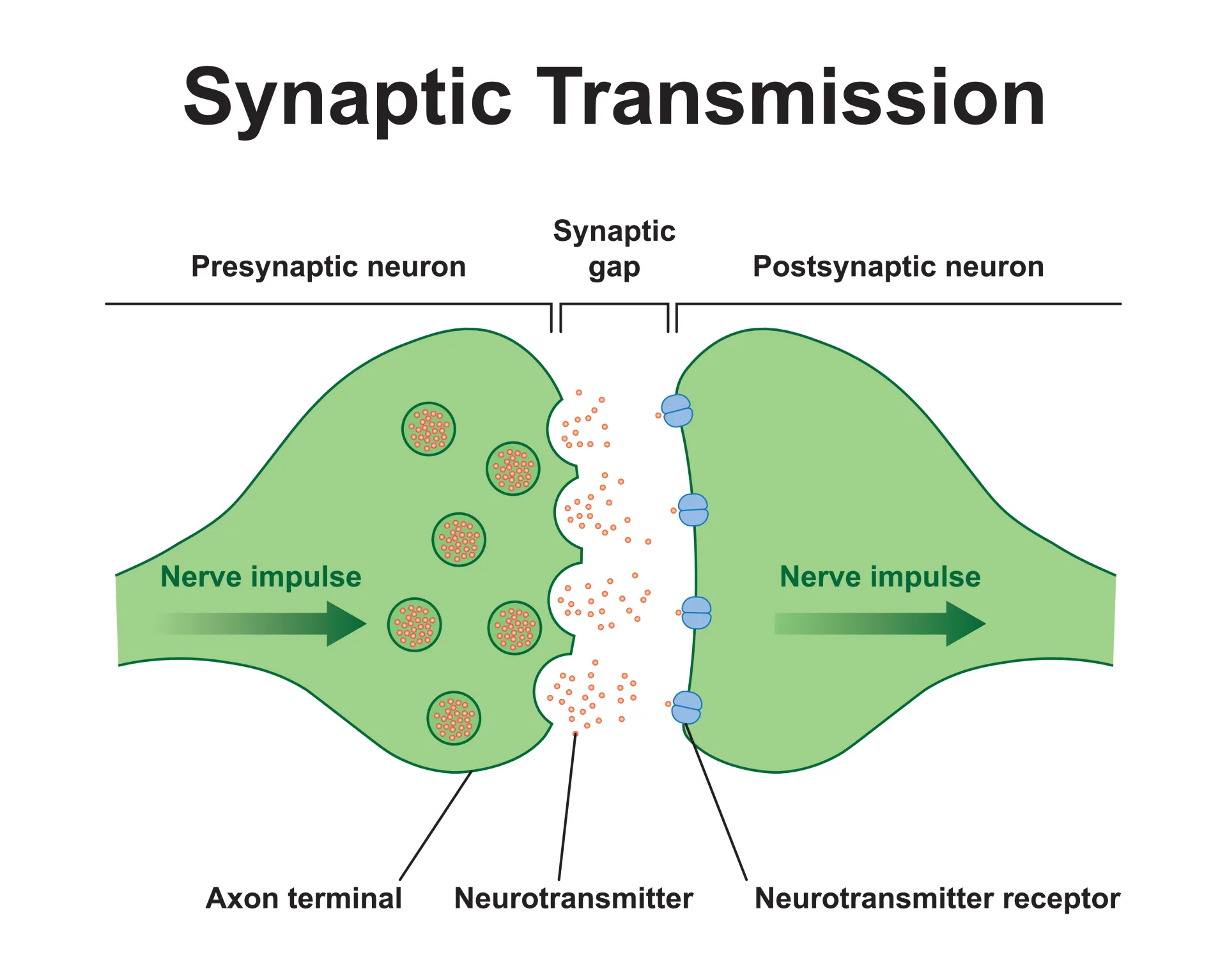

Synaptic Transmission (Diagram)

The provided diagram illustrates what happens after an action potential reaches the end of the axon (the axon terminal). While the text focuses on how the impulse travels along the axon (saltatory conduction), the diagram shows how the signal is passed from one neuron to the next at a synapse.

Possible Questions/Answers

Q: What is the function of local circuits in an axon? A: Local circuits of current, created by the diffusion of sodium ions, create depolarization in the next section of the axon membrane, propagating the action potential.
Q: What is saltatory conduction and why is it important? A: It is the process where a nerve impulse "jumps" from one node of Ranvier to the next in a myelinated axon. It is important because it dramatically increases the speed of nerve impulse transmission and reduces energy expenditure.

Summary

Local Circuits: The flow of Na⁺ ions along the inside of the axon membrane.
Function: To depolarize the subsequent Node of Ranvier to its threshold potential.
Saltatory Conduction: The resulting "jumping" of the action potential from node to node in myelinated fibers.
Biological Significance: This mechanism allows for extremely rapid communication within the nervous system, essential for quick reflexes and complex cognitive processes.
