An AC generator produces an alternating current or voltage that varies sinusoidally with time.

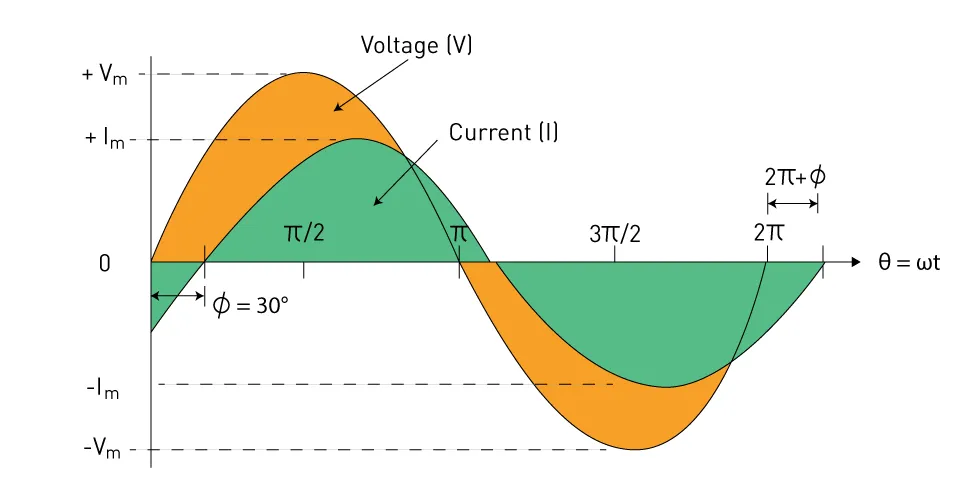

Sinusoidal Waveform

The general form for an alternating quantity (current or voltage) is: $x = x_{0} sin (ω t)$ where:

$x$ is the instantaneous value at time $t$
$x_{0}$ is the maximum or peak value
$ω$ is the angular frequency of the generator

Specifically for current and voltage:

Alternating current: $I = I_{0} sin (ω t)$
Alternating voltage: $V = V_{0} sin (ω t)$

A sinusoidal waveform has the following characteristics:

It changes direction (polarity) at regular intervals
Its magnitude changes continuously
The change is smooth, being most rapid at the zero-crossing points and slowest at the peaks

AC Terminologies

Cycle: One complete set of positive and negative values of an alternating quantity.
Time Period (T): The time taken to complete one cycle.
Frequency (f): The number of cycles completed in one second, measured in Hertz (Hz). In Pakistan, the standard AC frequency is 50 Hz.
Angular Frequency (ω): The angular frequency is related to frequency by $ω = 2 π f$ . The time period is $T = 1/ f = 2 π / ω$ .
Peak Value ( $x_{0}$ ): The maximum value (positive or negative) of the alternating quantity.
Peak-to-Peak Value ( $p - p$ ): The sum of the positive and negative peak values ( $V_{p - p} = 2 V_{0}$ ).
Average Value: The average of all values over a period. For a sinusoidal waveform over one complete cycle, the average value is zero because the positive and negative halves cancel each other out.

$Average value = \frac{Total (net) area under the curve for time T}{Time T}$

Root-Mean-Square (r.m.s.) Value: The r.m.s. value of an AC current is the equivalent steady DC current that would produce the same heating effect in a resistor. It is also known as the effective value.

Root Mean Square Speed of Gas→

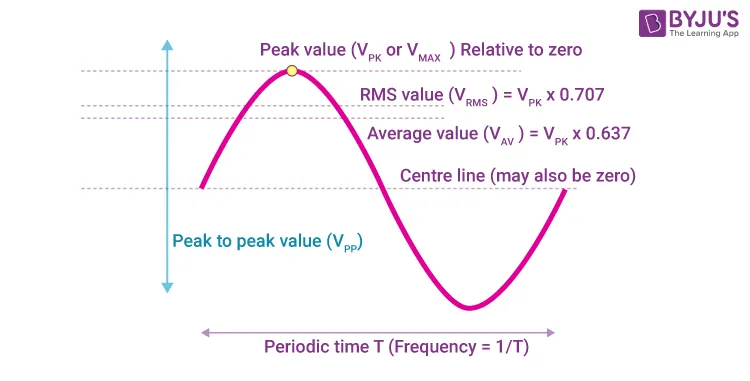

The relationship between r.m.s. and peak values is:

Quantity	Formula
r.m.s. current	$I_{r m s} = \frac{I _{0}}{2} \approx 0.707 I_{0}$
r.m.s. voltage	$V_{r m s} = \frac{V _{0}}{2} \approx 0.707 V_{0}$

Mean Power and Maximum Power

When an alternating current $I = I_{0} sin (ω t)$ flows through a resistor $R$ , the instantaneous power dissipated is: $P = I^{2} R = (I_{0} sin (ω t))^{2} R = I_{0}^{2} R sin^{2} (ω t)$

Since the current is squared, the power is always positive. The value of $sin^{2} (ω t)$ varies between 0 and 1, with an average value of $1/2$ . Therefore, the average (or mean) power delivered to the resistor is: $⟨ P ⟩ = \frac{1}{2} I_{0}^{2} R = I_{r m s}^{2} R$

This shows that the mean power in a resistive load is half the maximum power ( $P_{ma x} = I_{0}^{2} R$ ).

Worked Examples

Example 1: An AC circuit consists of a pure resistance of $20 Ω$ and is connected across an AC supply of $220 V$ , $50 Hz$ . Calculate (a) the peak value of voltage, (b) the peak value of current, and (c) the equations for voltage and current.

Given: $R = 20 Ω$ , $V_{r m s} = 220 V$ , $f = 50 Hz$

(a) Peak Voltage ( $V_{0}$ ): $V_{0} = 2 V_{r m s} = 2 \times 220 V \approx 311.1 V$

(b) Peak Current ( $I_{0}$ ): $I_{0} = \frac{V _{0}}{R} = \frac{311.1 V}{20 Ω} \approx 15.55 A$

(c) Equations for Voltage and Current: First, find the angular frequency: $ω = 2 π f = 2 π (50 Hz) = 314 rad/s$ The equation for voltage is $V = V_{0} sin (ω t) ⟹ V = 311.1 sin (314 t)$ The equation for current is $I = I_{0} sin (ω t) ⟹ I = 15.55 sin (314 t)$

Example 2: The peak voltage of an AC supply is 320 V. What is the r.m.s. value of this voltage?

Given: Peak Voltage $V_{0} = 320 V$ Formula: $V_{r m s} = V_{0} / 2$ Calculation: $V_{r m s} = 320 V / 2 \approx 226.3 V$
