13.3 Time as the Fourth Dimension

Introduction

Before the 20th century, physics treated space and time as distinct and absolute concepts. Space was understood through the three dimensions of length, width, and height, while time was seen as a universal, independent parameter that marked the sequence of events. Albert Einstein's theory of relativity revolutionized this view by demonstrating that to fully describe an event's location in the universe, one must specify not only its three spatial coordinates but also its position in time. This unification of space and time into a single, four-dimensional framework is a cornerstone of modern physics.

Spacetime and its Representation

The Spacetime Continuum

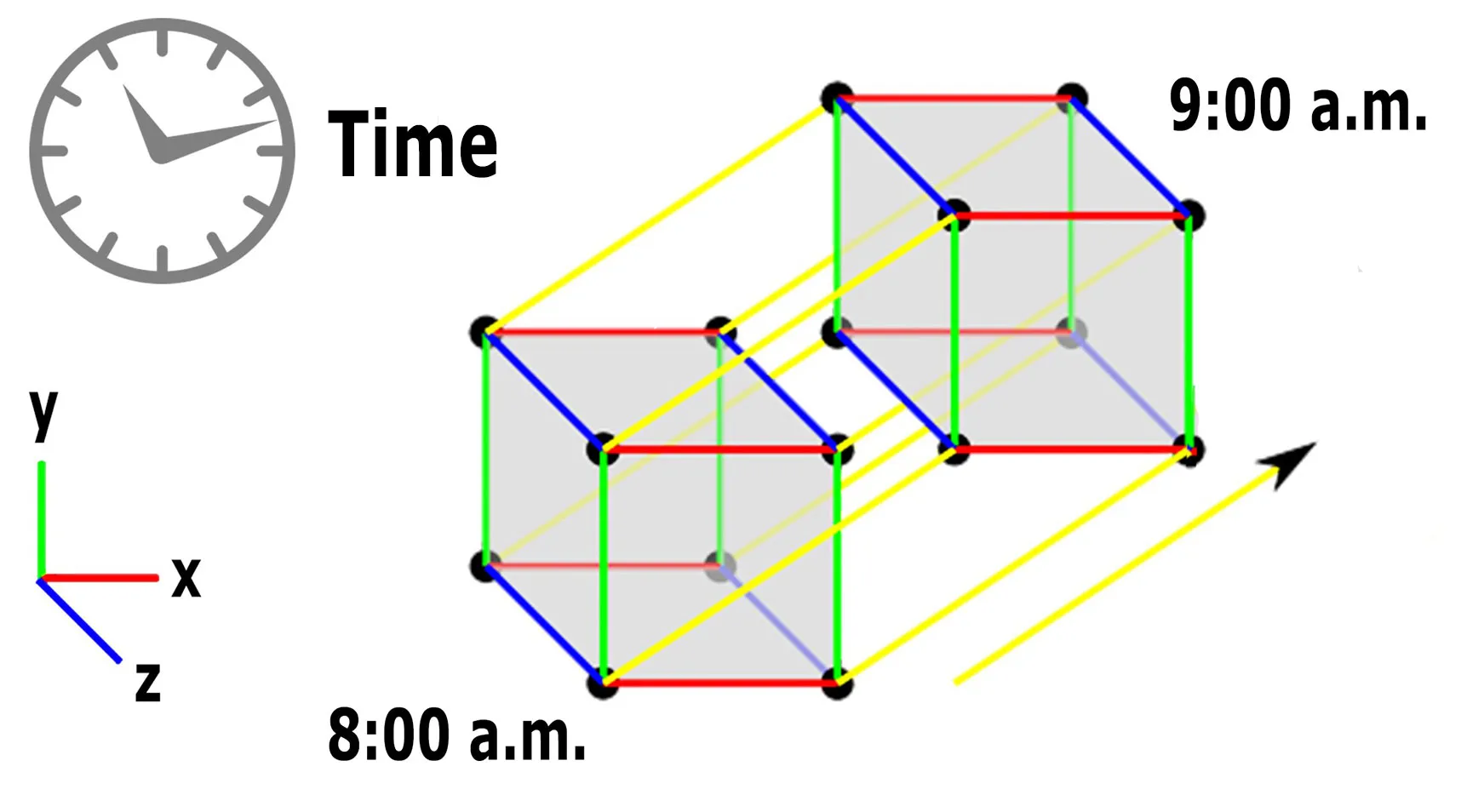

The concept that fuses the three dimensions of space with the one dimension of time is known as the spacetime continuum. In this model, space and time are inextricably linked; one cannot move through space without also moving through time. Every object and event in the universe exists at a specific location within this four-dimensional fabric. This integrated framework is essential for understanding the relativistic effects that occur at high velocities.

Spacetime Diagrams

A spacetime diagram is a graph that illustrates the position of objects in space at various moments in time. These diagrams are powerful tools for visualizing the often counter-intuitive consequences of relativity without needing complex mathematics.

Key Features:

• Each point on the diagram is called an event, representing a unique position in both space and time.
• The path of an object through spacetime is called its worldline.
• By convention, time is often plotted on the vertical axis and one dimension of space on the horizontal axis.
• These diagrams can graphically represent relativistic phenomena such as time dilation and length contraction.

Historical Perspective

Minkowski Space

In 1908, the mathematician Hermann Minkowski, one of Einstein's former professors, provided a crucial geometric interpretation of special relativity. He proposed that space and time could be formally united into a single four-dimensional structure, which is now known as Minkowski Space.

• Minkowski's formulation showed that while different observers in relative motion might disagree on measurements of distance and time separately, they would always agree on the spacetime interval between two events.
• This geometric viewpoint was not just a mathematical convenience; it revealed a deeper, underlying structure to the universe.
• The concept of a unified spacetime was a critical step that paved the way for Einstein's development of the theory of general relativity, which describes gravity as the curvature of spacetime caused by mass and energy.

Key Takeaways
