11.8 Carbon Fibre in Concrete Bridge

Carbon fibre-reinforced concrete is an advanced composite material that significantly enhances the performance of traditional concrete. By embedding short carbon fibres into the concrete mix, the resulting material gains superior strength, durability, and other beneficial properties, making it particularly valuable for reinforcing structures like bridges.

Benefits of Carbon Fibre in Concrete

The addition of carbon fibres provides a wide range of advantages over standard concrete:

• Improved Mechanical Properties:

  • Compressive Strength: Increases the ability to withstand crushing forces.
  • Tensile Strength: Greatly improves resistance to pulling or stretching forces.
  • Elasticity: Enhances the material's ability to deform under load and return to its original shape.

• Enhanced Durability:

  • Chemical Stability: Better resistance to chemical degradation.
  • Abrasion Resistance: More resistant to surface wear and tear.
  • Corrosion Resistance: Unlike steel rebar, carbon fibres do not rust, making the concrete ideal for corrosive environments.

• Structural Integrity:

  • Crack Reduction: Helps to control and reduce shrinkage cracks that form as concrete cures.
  • Reduced Brittleness: Makes the concrete tougher and less prone to shattering.

• Other Advantages:

  • Light Weight: Lighter than traditional concrete, which can reduce structural load and ease transportation.
  • Good Thermal Conductivity: Improves the transfer of heat through the material.

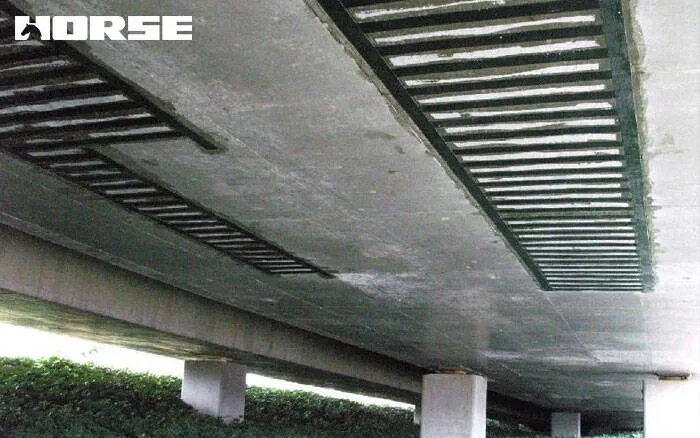

Application in Concrete Bridges

Carbon fibres are especially effective in the construction and reinforcement of bridges.

• Primary Goals: The main objectives are to improve flexural strength (resistance to bending) and reduce the width of cracks that may form under stress.
• Optimal Amount: The ideal quantity of carbon fibre is approximately 0.3% by volume of the concrete. This concentration provides a significant boost in performance without being excessive.

In physics, the properties of these materials are often analyzed using Dimensions→ and Derived Units→. For example, the stress applied to these bridges is measured in Pascals.

Inspection and Reliability

A unique advantage of carbon fibre reinforcement is the ability to monitor the structural health of the bridge.

• Electrical Sensing: Since carbon fibres are electrically conductive, sensors can be used to measure the electrical resistance of the concrete.
• Crack Detection: If cracks begin to form, some carbon fibres will break or separate. This causes an increase in the electrical resistance, which can be detected by the sensor. This method allows engineers to identify internal damage long before it becomes visible, ensuring the long-term reliability and safety of the structure.
