10.4 Ferrofluid | Electrostatics | Physics 11

A ferrofluid is a liquid that becomes strongly magnetized when an external magnetic field is applied. It is a stable colloidal suspension composed of nanoscale magnetic particles suspended within a liquid carrier.

Composition and Structure

A ferrofluid is made of three key components:

Magnetic Nanoparticles: Extremely small particles (typically 10 nm in diameter) of a magnetic material, such as magnetite ( $F e_{3} O_{4}$ ).
Surfactant: A soap-like coating on each nanoparticle that prevents them from clumping together.
Carrier Liquid: A liquid medium, usually an oil or water, where the coated particles are dispersed.

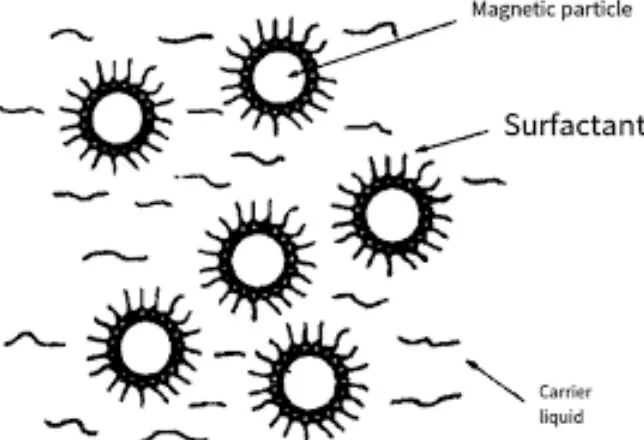

Microscopic view of ferrofluid particles suspended in a liquid. — Figure 10.X: Nanoscale magnetic particles suspended in a carrier liquid.

Magnetic Behavior

Without a Field: The magnetic particles are randomly oriented, and the fluid behaves like a normal, non-magnetic liquid.
With a Field: The nanoparticles instantly align with the magnetic field lines. The fluid is drawn to the magnet and forms sharp, spiky patterns on its surface that trace the lines of the magnetic field. These spikes represent the alignment of magnetic moments with the field, creating channels through which magnetic flux passes.
Superparamagnetism: Ferrofluids are strongly magnetic only while the field is applied. They retain no permanent magnetism once the field is removed. This on/off magnetic property is crucial for their applications.

Applications of Ferrofluids

The unique ability to control a liquid with a magnet allows for many innovative uses across different fields.

Electronics and Audio

Loudspeaker Cooling: In high-performance loudspeakers, ferrofluid is placed in the gap around the voice coil. It conducts heat away from the coil and dampens unwanted vibrations, resulting in clearer sound.

Mechanical Engineering

Rotating Shaft Seals: Ferrofluid can form a perfect, frictionless seal around a spinning shaft. Magnets hold the liquid in place, preventing dust, debris, or gases from passing through, which is useful in computer hard drives and other machinery.

Medical Physics

Targeted Drug Delivery: Scientists are researching how to attach drugs to ferrofluid particles and guide them to a specific target in the body (like a tumor) using external magnets.
MRI Contrast Agent: Ferrofluids can be used as a contrast agent to improve the visibility of images in Magnetic Resonance Imaging (MRI).

Art and Education

Visualizing Magnetic Fields: The dramatic spiky patterns make ferrofluids a popular tool in science museums, art installations, and educational demonstrations to provide a stunning visual representation of invisible magnetic fields.

Possible Questions and Answers

Q: What prevents the magnetic particles in a ferrofluid from sticking together?
A: Each nanoparticle is coated with a surfactant. This surfactant layer creates a repulsive barrier between the particles, overcoming the magnetic attraction and preventing them from clumping.
Q: How is a ferrofluid different from having iron filings in oil?
A: Iron filings are large and will quickly clump together and settle out of the oil due to gravity. In a ferrofluid, the nanoparticles are so small that thermal motion (Brownian motion) keeps them permanently and uniformly suspended, creating a stable colloidal liquid.
