23.5 Applications of Industrial Chemistry | Industry | Chemistry 12

The chemical sector encompasses businesses involved in the creation and manufacturing of industrial, specialized, and various other types of chemicals, essential for numerous aspects of modern life.

1. Petrochemicals

Petrochemicals are compounds derived from petroleum and its fractions. They are widely applied in various industries, leading to products such as insulation, soaps, detergents, paints, fertilizers, rubber, coatings, cosmetics, and textiles. Petrochemicals are broadly categorized into three types based on their starting materials:

a. Olefins

Major olefins include ethene, propene, and butadiene. Each of these serves as a precursor for a multitude of petrochemicals.

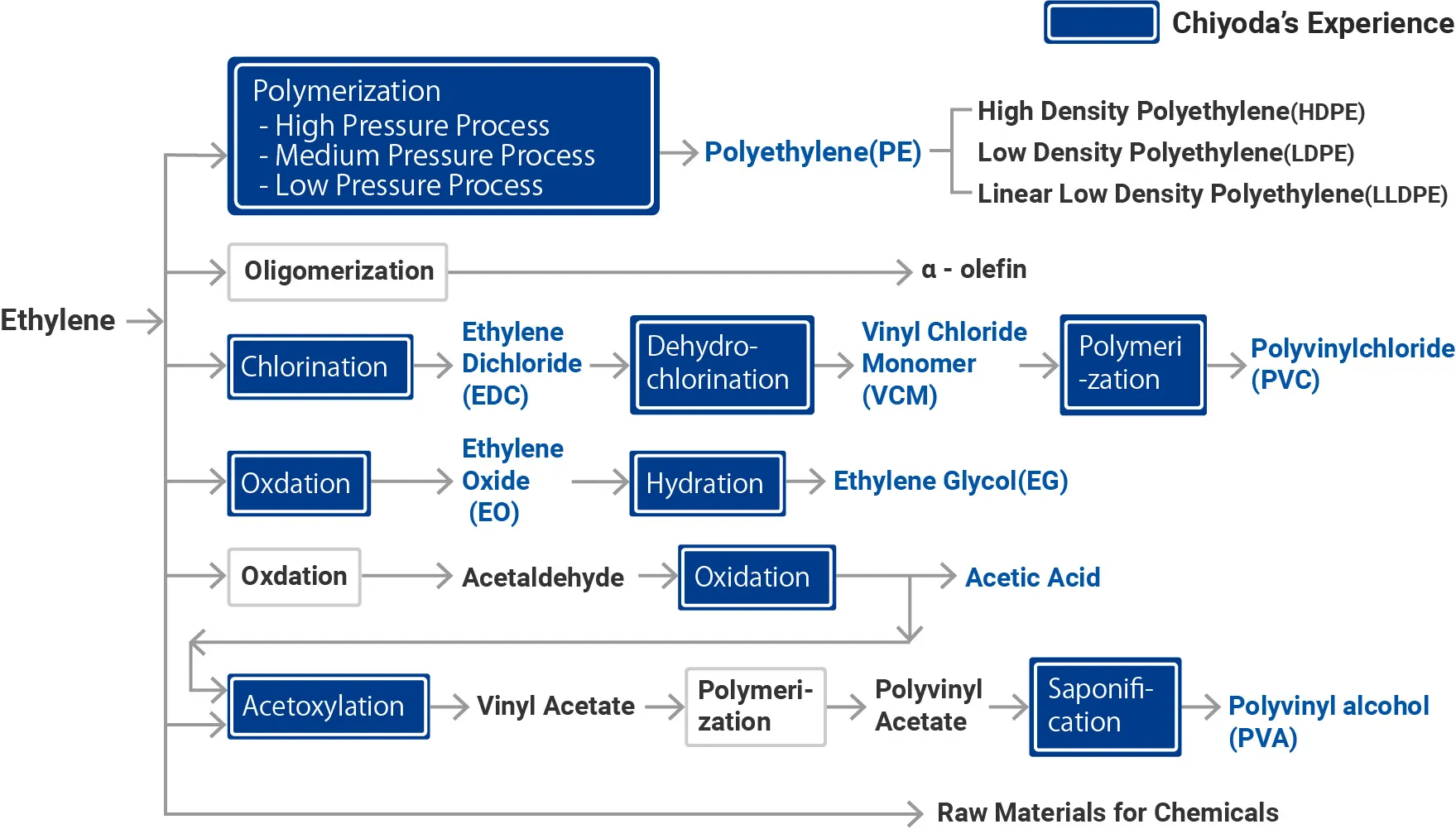

Ethene ( $C_{2} H_{4}$ ): A primary building block for polyethylene (plastics), ethanol, ethylene oxide, and vinyl chloride.

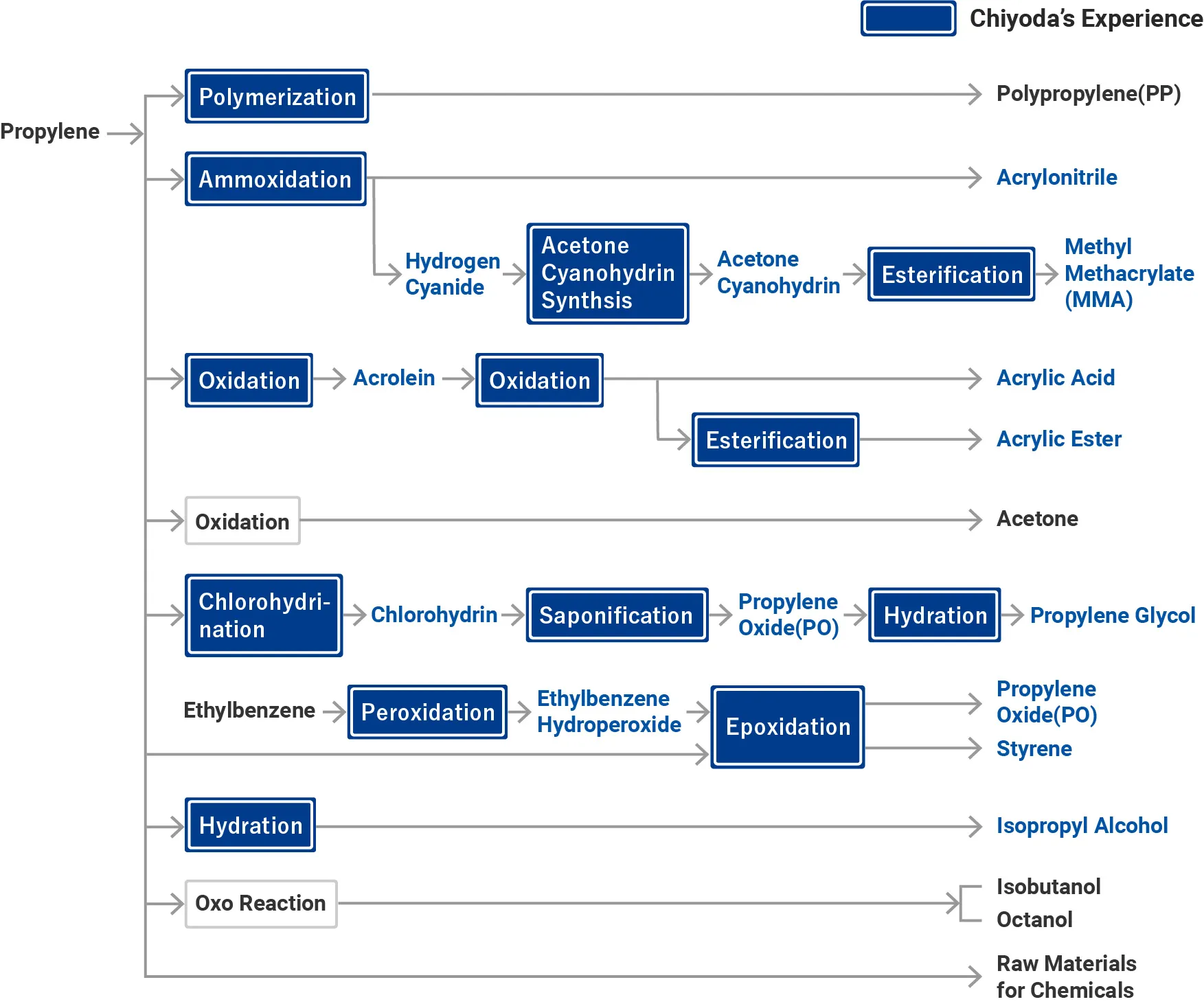

Propene ( $C_{3} H_{6}$ ): Used in the production of polypropylene, isopropanol, and acrylonitrile.
Butadiene ( $C_{4} H_{6}$ ): Essential for synthetic rubber (e.g., SBR) and nylon production.

b. Aromatics

Aromatics include benzene, toluene, and xylenes. These compounds are crucial for synthesizing various other chemicals and polymers.

Benzene ( $C_{6} H_{6}$ ): Precursor for styrene (polystyrene), cumene (phenol, acetone), and cyclohexane (nylon).
Toluene ( $C_{6} H_{5} C H_{3}$ ): Used in the production of TDI (polyurethanes), benzoic acid, and as a solvent.
Xylenes ( $C_{6} H_{4} (C H_{3})_{2}$ ): Especially para-xylene, which is oxidized to terephthalic acid, a monomer for PET (polyester fibers and bottles).

2. Synthesis Gas (Syn Gas)

Synthesis gas, commonly known as syn gas, is a mixture primarily composed of carbon monoxide ( $C O$ ), hydrogen gas ( $H_{2}$ ), nitrogen ( $N_{2}$ ), and various hydrocarbons.

Applications of Syn Gas:

Chemical Synthesis: Used to prepare many useful compounds such as acetic acid ( $C H_{3} C O O H$ ), ammonia ( $N H_{3}$ ), and urea ( $C O (N H_{2})_{2}$ ).
Fuel Production: A key intermediate for manufacturing synthetic natural gas (SNG) and biofuels like methanol ( $C H_{3} O H$ ) and ethanol ( $C_{2} H_{5} O H$ ).
Environmental Benefits: Utilized in carbon capture processes to reduce carbon dioxide ( $C O_{2}$ ) emissions, thereby mitigating the greenhouse effect and global warming.
Energy Generation: Employed in combined heat and power (CHP) systems to generate electricity and heat efficiently.

3. Cosmetics

Cosmetics are mixtures of chemical compounds, which can be derived from both natural and synthetic sources. Their primary purposes include personal care, skin care, concealing blemishes, enhancing natural features, adding color, or completely altering facial appearance. Common examples include lipstick, mascara, nail polish, creams, and dyes.

a. Nail Polish

Nail polish does not have a single fixed formula but comprises several key ingredients:

Film-forming agents: Provide hardness and gloss. Examples: nitrocellulose, cellulose acetate, cellulose acetate butyrate, vinyl polymers, acrylates, maleic acid monobutyl ester, and zein (a protein).
Resins and plasticizers: Enhance flexibility and adhesion. Examples: castor oil, amyl and butyl stearate, and mixes of fatty acids and glycerol.
Solvents: Dissolve other components to allow for smooth application and evaporation. Examples: ethyl acetate, butyl acetate, acetone, toluene, and isopropyl alcohol.
Coloring agents: Provide the desired color. Examples: iron oxides, color lakes, mica, titanium dioxide, carmine, ultramarine, and manganese violet.

Manufacturing Method of Nail Polish:

Pigment Dispersion: Pigments (e.g., nitrocellulose) and plasticizers are mixed and ground in a "two-roll" differential speed mill to achieve a fine, homogeneous color dispersion.
Chip Formation: Once properly milled, the mixture is removed from the mill in sheets, then broken down into small chips.
Solvent Mixing: These chips are then mixed with the chosen solvents.
Additive Incorporation: The mixture is slightly cooled before adding other materials like perfumes, moisturizers, and cooling agents.
Bulk Transfer: The prepared mixture is pumped into larger drums for transport to the production line.
Bottling and Packaging: The finished nail polish is pumped using explosion-proof pumps into smaller bottles suitable for the consumer market.

b. Lipstick

Raw Materials for Lipstick:

Waxes: Provide structure and shape. Examples: beeswax, carnauba wax, candelilla wax.
Oils: Ensure smooth application and gloss. Examples: lanolin oil, castor oil, and various vegetable oils.
Natural ingredients: Contribute to texture, color, and conditioning. Examples: butter, natural pigments, fruit-based chemicals.
Pigments: Both natural and synthetic, provide the desired color.
Alcohols: Used as solvents or to help with mixing. Example: isopropyl alcohol.
Preservatives: Prevent spoilage and extend shelf life. Examples: antioxidants.

Manufacturing Method of Lipstick:

Separate Melting and Mixing: Raw materials are initially melted and mixed separately due to their heterogeneous nature. Three primary mixtures are prepared: one with solvents, one with oils, and one with fats and waxy materials.
Pigment Dispersion: The solvent mixture and oils are combined with the color pigments.
Grinding and Homogenization: The pigment mass is ground and mixed thoroughly.
Wax Incorporation: This pigment-oil mixture is then added to the hot wax mass until a uniform color and consistency are achieved.
De-aeration: The lipstick mass is made free from air bubbles.
Molding and Cooling: The melted mass is transferred into molds, typically "upside down," and then cooled.
Demolding and Sealing: The solidified lipstick is separated from the mold and sealed from the bottom.
Finishing: The lipsticks are briefly passed through a flame to seal any pinholes and improve their surface finish.
Capping and Packaging: Finally, the lipsticks are capped, ready for labeling and packaging for consumer distribution.

c. Hair Dyes and Pharmaceutical Synthesis

In the pharmaceutical and cosmetic industry, synthesis methods are categorized to produce complex molecules.

4. Cement

Cement is a crucial building material, typically a dirty green-colored powder, used to bind bricks and stones together in construction when mixed with water, sand, and aggregates (crush).

Raw Materials for Cement Production:

Limestone ( $C a C O_{3}$ ): Approximately $65%$ of the cement composition. Provides calcium oxide ( $C a O$ ).
Gypsum ( $C a S O_{4} \cdot 2 H_{2} O$ ): Added in small amounts ( $2 - 3%$ ) during final grinding to regulate setting time.
Clay or Shale: Makes up about $20 - 30%$ of the raw mix. Provides silica ( $S i O_{2}$ ), alumina ( $A l_{2} O_{3}$ ), and iron oxide ( $F e_{2} O_{3}$ ).
Supplementary Ingredients: Minor amounts of materials like fly ash, silica fumes, iron ore or mill scale, and bauxite, added according to the desired cement type and application.

Manufacturing Process of Cement:

Mining: Raw materials (limestone, clay) are extracted from nearby quarries and transported to the factory.
Crushing: Large raw material stones are crushed into small pebbles and then ground into a fine powder.
Homogenization: The finely ground raw materials are mixed in precise percentages to ensure a homogeneous powder, often called "raw meal."
Clinkerization: The raw meal is fed into a large rotary kiln, operating at very high temperatures (around $140 0^{\circ} C$ to $145 0^{\circ} C$ ). Here, calcium oxide reacts with silica, alumina, and iron oxide to form complex calcium aluminates, silicates, and ferrites. These compounds are the main components of the "clinker," which are small, semi-round pebbles.
- Key reactions during clinkerization:
  - $C a C O_{3} heat C a O + C O_{2}$
  - $C a O + S i O_{2} \to C a S i O_{3} (Calcium silicates)$
  - $C a O + A l_{2} O_{3} \to C a_{3} A l_{2} O_{6} (Calcium aluminates)$
  - $C a O + F e_{2} O_{3} \to C a_{2} F e_{2} O_{5} (Calcium ferrites)$
Cement Grinding: The clinker is then ground in a ball mill along with a small amount of gypsum (typically $2 - 3%$ ). Gypsum is added to control the setting time of the cement, preventing it from setting too quickly when mixed with water. Other additives may also be included.
Packing: The final cement powder is usually packed into $50 k g$ bags, though bulk transportation by truck is also common based on demand.

The chemical sector encompasses businesses involved in the creation and manufacturing of industrial, specialized, and various other types of chemicals, essential for numerous aspects of modern life.

1. Petrochemicals

a. Olefins

Major olefins include ethene, propene, and butadiene. Each of these serves as a precursor for a multitude of petrochemicals.

Ethene ( $C_{2} H_{4}$ ): A primary building block for polyethylene (plastics), ethanol, ethylene oxide, and vinyl chloride.
Propene ( $C_{3} H_{6}$ ): Used in the production of polypropylene, isopropanol, and acrylonitrile.
Butadiene ( $C_{4} H_{6}$ ): Essential for synthetic rubber (e.g., SBR) and nylon production.

b. Aromatics

Aromatics include benzene, toluene, and xylenes. These compounds are crucial for synthesizing various other chemicals and polymers.

Benzene ( $C_{6} H_{6}$ ): Precursor for styrene (polystyrene), cumene (phenol, acetone), and cyclohexane (nylon).
Toluene ( $C_{6} H_{5} C H_{3}$ ): Used in the production of TDI (polyurethanes), benzoic acid, and as a solvent.
Xylenes ( $C_{6} H_{4} (C H_{3})_{2}$ ): Especially para-xylene, which is oxidized to terephthalic acid, a monomer for PET (polyester fibers and bottles).

2. Synthesis Gas (Syn Gas)

Synthesis gas, commonly known as syn gas, is a mixture primarily composed of carbon monoxide ( $C O$ ), hydrogen gas ( $H_{2}$ ), nitrogen ( $N_{2}$ ), and various hydrocarbons.

Applications of Syn Gas:

Chemical Synthesis: Used to prepare many useful compounds such as acetic acid ( $C H_{3} C O O H$ ), ammonia ( $N H_{3}$ ), and urea ( $C O (N H_{2})_{2}$ ).
Fuel Production: A key intermediate for manufacturing synthetic natural gas (SNG) and biofuels like methanol ( $C H_{3} O H$ ) and ethanol ( $C_{2} H_{5} O H$ ).
Environmental Benefits: Utilized in carbon capture processes to reduce carbon dioxide ( $C O_{2}$ ) emissions, thereby mitigating the greenhouse effect and global warming.
Energy Generation: Employed in combined heat and power (CHP) systems to generate electricity and heat efficiently.

3. Cosmetics

a. Nail Polish

Nail polish does not have a single fixed formula but comprises several key ingredients:

Film-forming agents: Provide hardness and gloss. Examples: nitrocellulose, cellulose acetate, cellulose acetate butyrate, vinyl polymers, acrylates, maleic acid monobutyl ester, and zein (a protein).
Resins and plasticizers: Enhance flexibility and adhesion. Examples: castor oil, amyl and butyl stearate, and mixes of fatty acids and glycerol.
Solvents: Dissolve other components to allow for smooth application and evaporation. Examples: ethyl acetate, butyl acetate, acetone, toluene, and isopropyl alcohol.
Coloring agents: Provide the desired color. Examples: iron oxides, color lakes, mica, titanium dioxide, carmine, ultramarine, and manganese violet.

Manufacturing Method of Nail Polish:

Pigment Dispersion: Pigments (e.g., nitrocellulose) and plasticizers are mixed and ground in a "two-roll" differential speed mill to achieve a fine, homogeneous color dispersion.
Chip Formation: Once properly milled, the mixture is removed from the mill in sheets, then broken down into small chips.
Solvent Mixing: These chips are then mixed with the chosen solvents.
Additive Incorporation: The mixture is slightly cooled before adding other materials like perfumes, moisturizers, and cooling agents.
Bulk Transfer: The prepared mixture is pumped into larger drums for transport to the production line.
Bottling and Packaging: The finished nail polish is pumped using explosion-proof pumps into smaller bottles suitable for the consumer market.

b. Lipstick

Raw Materials for Lipstick:

Waxes: Provide structure and shape. Examples: beeswax, carnauba wax, candelilla wax.
Oils: Ensure smooth application and gloss. Examples: lanolin oil, castor oil, and various vegetable oils.
Natural ingredients: Contribute to texture, color, and conditioning. Examples: butter, natural pigments, fruit-based chemicals.
Pigments: Both natural and synthetic, provide the desired color.
Alcohols: Used as solvents or to help with mixing. Example: isopropyl alcohol.
Preservatives: Prevent spoilage and extend shelf life. Examples: antioxidants.

Manufacturing Method of Lipstick:

Separate Melting and Mixing: Raw materials are initially melted and mixed separately due to their heterogeneous nature. Three primary mixtures are prepared: one with solvents, one with oils, and one with fats and waxy materials.
Pigment Dispersion: The solvent mixture and oils are combined with the color pigments.
Grinding and Homogenization: The pigment mass is ground and mixed thoroughly.
Wax Incorporation: This pigment-oil mixture is then added to the hot wax mass until a uniform color and consistency are achieved.
De-aeration: The lipstick mass is made free from air bubbles.
Molding and Cooling: The melted mass is transferred into molds, typically "upside down," and then cooled.
Demolding and Sealing: The solidified lipstick is separated from the mold and sealed from the bottom.
Finishing: The lipsticks are briefly passed through a flame to seal any pinholes and improve their surface finish.
Capping and Packaging: Finally, the lipsticks are capped, ready for labeling and packaging for consumer distribution.

Limestone ( $C a C O_{3}$ ): Approximately $65%$ of the cement composition. Provides calcium oxide ( $C a O$ ).
Gypsum ( $C a S O_{4} \cdot 2 H_{2} O$ ): Added in small amounts ( $2 - 3%$ ) during final grinding to regulate setting time.
Clay or Shale: Makes up about $20 - 30%$ of the raw mix. Provides silica ( $S i O_{2}$ ), alumina ( $A l_{2} O_{3}$ ), and iron oxide ( $F e_{2} O_{3}$ ).
Supplementary Ingredients: Minor amounts of materials like fly ash, silica fumes, iron ore or mill scale, and bauxite, added according to the desired cement type and application.

Manufacturing Process of Cement:

Mining: Raw materials (limestone, clay) are extracted from nearby quarries and transported to the factory.
Crushing: Large raw material stones are crushed into small pebbles and then ground into a fine powder.
Homogenization: The finely ground raw materials are mixed in precise percentages to ensure a homogeneous powder, often called "raw meal."
Clinkerization: The raw meal is fed into a large rotary kiln, operating at very high temperatures (around $140 0^{\circ} C$ to $145 0^{\circ} C$ ). Here, calcium oxide reacts with silica, alumina, and iron oxide to form complex calcium aluminates, silicates, and ferrites. These compounds are the main components of the "clinker," which are small, semi-round pebbles.
- Key reactions during clinkerization:
  - $C a C O_{3} heat C a O + C O_{2}$
  - $C a O + S i O_{2} \to C a S i O_{3} (Calcium silicates)$
  - $C a O + A l_{2} O_{3} \to C a_{3} A l_{2} O_{6} (Calcium aluminates)$
  - $C a O + F e_{2} O_{3} \to C a_{2} F e_{2} O_{5} (Calcium ferrites)$
Cement Grinding: The clinker is then ground in a ball mill along with a small amount of gypsum (typically $2 - 3%$ ). Gypsum is added to control the setting time of the cement, preventing it from setting too quickly when mixed with water. Other additives may also be included.
Packing: The final cement powder is usually packed into $50 k g$ bags, though bulk transportation by truck is also common based on demand.
