10.7 Vertical Soil-Free Food Farms | Biotechnology | Biology 12

This section outlines the principles of vertical farming, its different techniques, and a detailed comparison with traditional agricultural practices, particularly in the context of Pakistan.

Vertical Farming: An Overview

Definition: Vertical farming is a method of soil-free agriculture where plants are grown in vertically stacked layers or towers.

Purpose: It allows for food production in urban areas or places with limited land, such as greenhouses, warehouses, or even small indoor spaces.

Core Principle: It replaces heavy soil with lighter mediums, using air and water to create an artificial, controlled environment ideal for plant growth.

Types of Vertical Farming Systems

There are three primary techniques used in soil-free vertical farming:

Hydroponics

Method: Plant roots are submerged in a nutrient-rich water solution.

Process: Water flows through channels, delivering nutrients directly to the roots. The water is then recycled.

Advantage: Highly efficient water use, conserving up to 90% more water than traditional farming.

Aeroponics

Method: Plant roots are suspended in the air.

Process: A nutrient-rich mist is sprayed directly onto the roots at specific intervals.

Advantages: Considered more economical than hydroponics due to even lower water usage, better root oxygenation, and potentially higher crop yields.

Aquaponics

Method: A symbiotic system that combines hydroponics with fish farming (aquaculture).

Process:

Water from fish tanks, rich in fish excreta (natural fertilizer), is circulated to the plant beds.
Plants absorb the nutrients from the water.
The plants, in turn, filter and clean the water, which is then returned to the fish tanks.

Advantage: Creates a self-sustaining ecosystem, reducing the need for synthetic fertilizers.

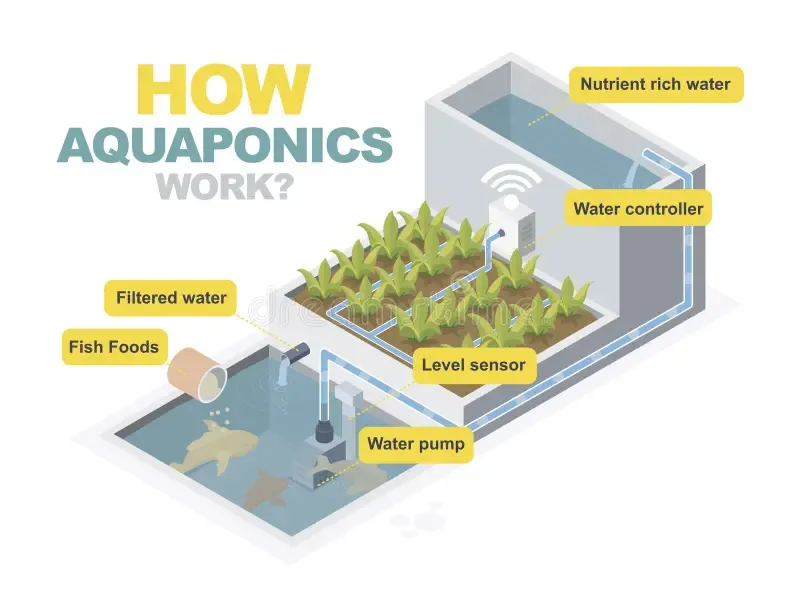

Fig. 10.12: Schematic diagram of Aquaponics: Vertical (Soil-free) food farming with fish farming

Controlled Environment Agriculture (CEA)

Vertical farming relies on CEA technology to create and maintain an optimal growing environment year-round.

Components of CEA:

LED Grow Lights: Vertically placed lights with timers provide the specific light spectrum needed for photosynthesis.
Climate Control: Temperature regulators and humidity controls maintain the optimal farm climate.
Sensors and Automation: Systems continually monitor plant growth, adjust conditions, and manage water and nutrient supply, often supported by AI.

Benefits of CEA: Faster plant growth, year-round production, and efficient resource use.

Comparison: Vertical Farming vs. Traditional Agriculture

The following table compares vertical farming with general agricultural practices, using Pakistan as a case study.

Feature	Vertical Food Farming	General Agricultural Practices
Space Utilization	Advantage: Utilizes minimal horizontal space by stacking layers. Ideal for urban areas with limited or expensive land.	Disadvantage: Requires vast horizontal fields, making it unsuitable for urban centers. Staple crops like wheat and rice need large areas.
Water Usage	Advantage: Uses 90-95% less water. Systems like hydroponics and aeroponics recycle or mist water, minimizing waste. Crucial for water-scarce regions.	Disadvantage: Consumes large amounts of water. Traditional irrigation is prone to wastage through evaporation and runoff, and certain crops (rice, sugarcane) are very water-intensive.
Yield and Productivity	Advantage: Higher yields per square foot and faster growth due to optimized, controlled environments. Allows for year-round production of crops like leafy greens, herbs, and strawberries.	Disadvantage: Dependent on seasons and vulnerable to unpredictable weather (floods, droughts). Productivity is often inconsistent and lower per unit of land.
Labour and Automation	Advantage: Can be highly automated with AI systems monitoring and controlling conditions, reducing the need for manual labour.	Disadvantage: Heavily reliant on manual labour, often using outdated tools and techniques, which can lead to lower productivity.
Crop Varieties	Disadvantage: Best suited for short-cycle, smaller crops (leafy greens, herbs, strawberries). Not yet feasible for large-scale production of staple crops like wheat, rice, or maize.	Advantage: Can produce a wide variety of crops, including grains, large fruits, and root vegetables, ensuring broad food security.
Pesticide Usage	Advantage: Controlled environments have a low risk of pests, minimizing or eliminating the need for pesticides and herbicides. Produces cleaner, toxin-free food.	Disadvantage: Requires frequent and extensive use of pesticides and fertilizers to control pests, which can pose risks to human health and the environment.
Environmental Impact	Advantage: Sustainable due to less water/land use, reduced transportation (if urban), no soil erosion. Energy demand can be a challenge but can be met with renewables.	Disadvantage: Prone to environmental degradation (soil erosion, salinity). Can lead to deforestation for land expansion and is heavily impacted by climate change.
Investment	Disadvantage: Requires a high initial investment for infrastructure (lighting, climate control, automation), making it less accessible for small farmers.	Advantage: Lower initial investment, especially for small-scale farmers using simple tools and natural resources.
